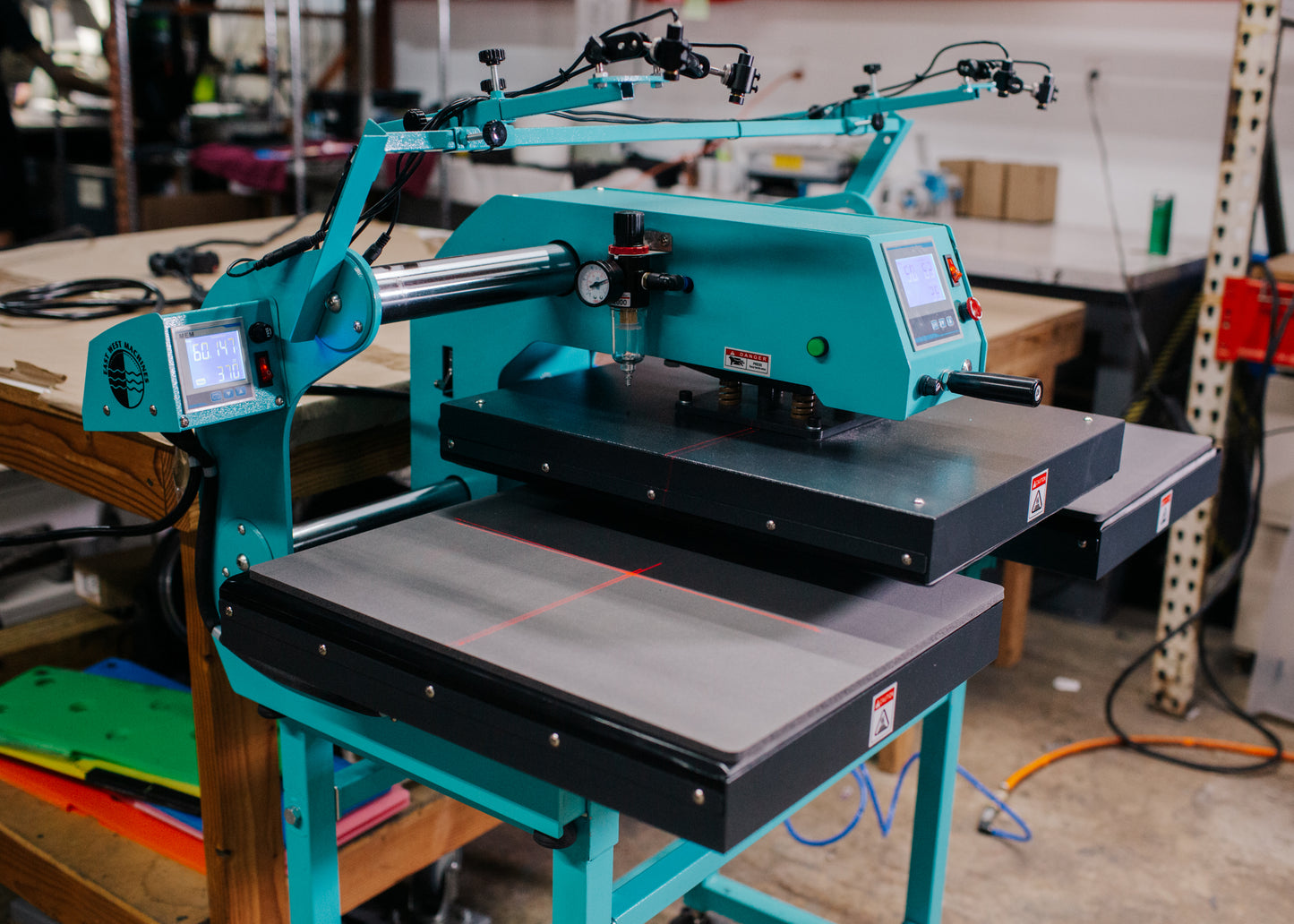

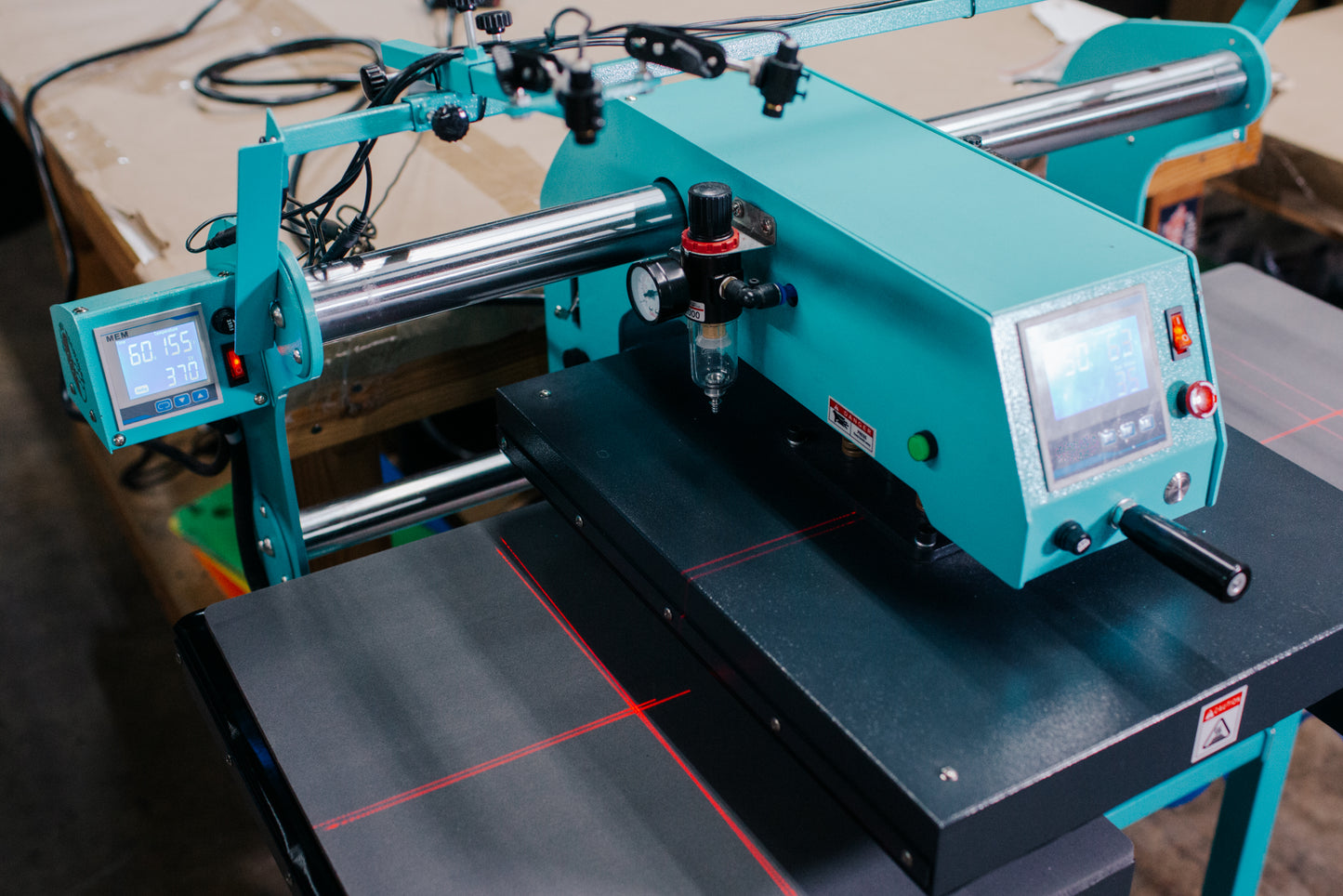

Pneumatic Dual Station Heat Press (Large) - EW-HP4050LH

Regular price $9,606.00 CAD
Regular price Sale price $9,606.00 CAD
Sale Sold out
Shipping calculated at checkout.

The EW_HP4050LH is East West Machines' mid-size model. This pneumatic dual station heat press was designed to transfer onto larger apparel and other goods.

Dual platens give the operator the ability to keep a higher cadence of output, rather than waiting on the machine. Botton heat makes for better adhesion onto heavy garments and thicker materials that benefit from heat from beneath.

Laser alignment helps you to get consistent results time after time. Easy to slide from platen to platen. The 16" x 20" heating element will accommodate larger images.

Produce over 350 units per hour with a single operator.

SPECIFICATIONS

Heat Element Size: 16" x 20" (top and bottom heat)
Max Temperature: 450°F
Pressure: Up to 120 PSI
Electrical: 110v - 3 x 20 amp
Footprint: 4ft x 3ft
Weight: 250lbs
Capacity: 300+ per hour

 FEATURES

  • Laser Alignment System - for consistent accuracy
  • Adjustable Pressure Settings - Adjust the PSI with easy to see readout
  • Intuitive Operation - Simple to operate, easy to train staff
  • Heat and Time Settings - Easily adjust the temperature and timing
  • Efficient Dual Platens - With bottom heat for better application

For use on apparel, paper, hard and soft goods, packaging, signs, koozies, sublimation and more. Great for DTG, vinyl, printed transfers, leather, heat seal patches, foil and other special effects.

FREE FREIGHT WITHIN THE CONTINENTAL U.S.
